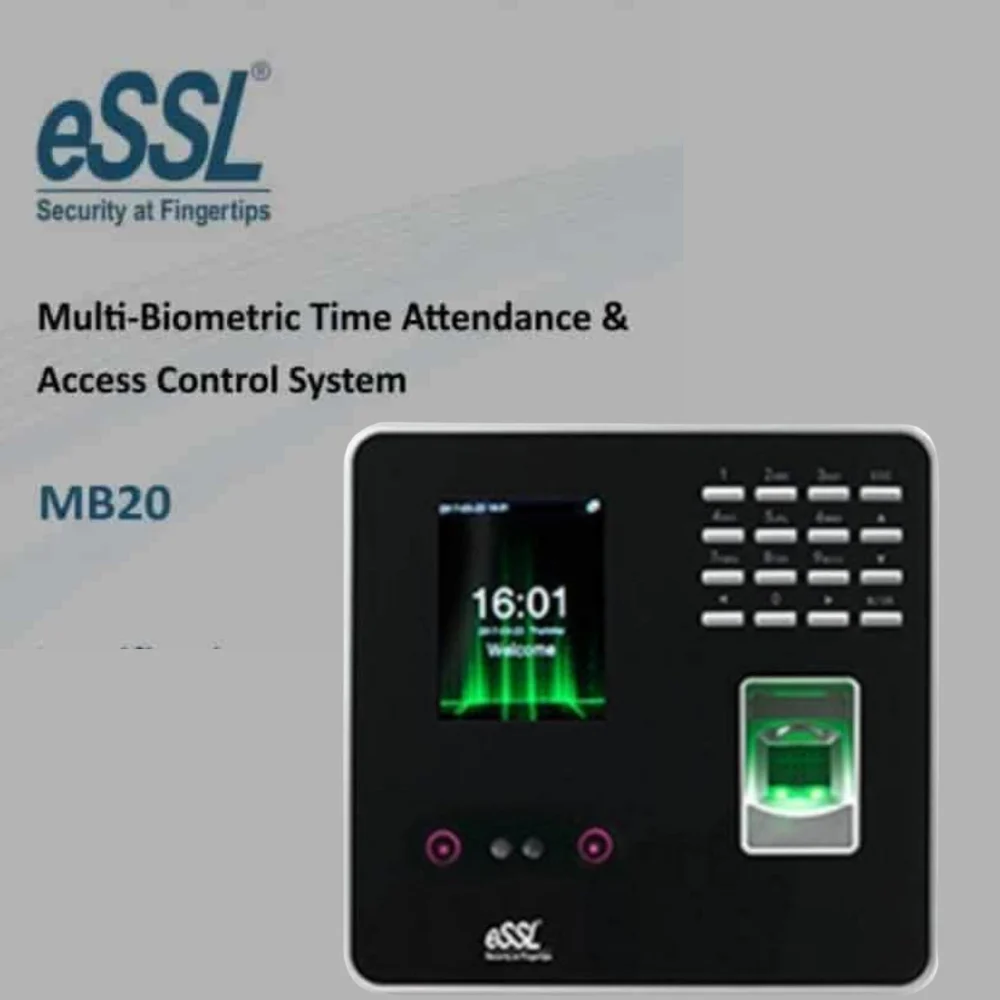

eSSL MB20 Face and Finger Biometric Attendance System
· 2.8" Color LCD Display
· Face Capacity: 500 /
Fingerprint Capacity: 2,000
· User Capacity: 1,000 / Transaction
Capacity: 50,000
· TCP/IP & USB Host
· Face + Fingerprint + RFID +
Password Verification
· Access Control: Lock, Door
Sensor & Exit Button
· Optional 5V 1900mAh UPS /
Up to 3 Hours Backup
· DC 5V/0.8A
· Size: 161.93 × 152.82 ×
30.59 mm
STORAGE CAPACITY : -User Capacity : 1000Fingerprint Capacity : 500Face Capacity : 200Transaction Capacity : 50000
VISUAL & AUDIO : - Display : 2.8" Color LCDSound : Stereo Speaker
COMMUNICATION : -Communication : TCP/IP, USB-HostPush Data : Yes (≤1 Sec)
STANDARD FUNCTIONS : -Automatic Status Switch, Self-Service Query, DST, T9 Input, 9Digit User ID,Scheduled Bell, Photo ID, Lock, Sensor, Exit Button
POWER & ENVIRONMENT : -Power Supply : DC 5V --- 0.8AOperating Temperature : 0°C - 45°COperating Humidity : 20% - 80%Dimension (in mm) : (L)161.93 x (W)152.82 x (H)30.59
FEATURES : -Fingerprint, face, RFID and password 4 type verification modeHigh-speed identification less than 1 secondTCP/IP Port for Internet connectionAccess Port available to control one lock and exit buttonOptional 5V 1900mAH UPS, standby up to 3 hours
