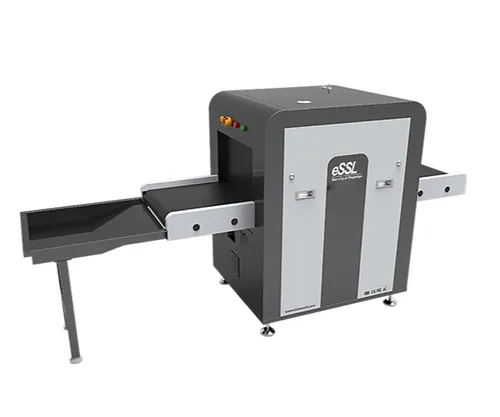

Essl - X5030c Dual Energy X-Ray Inspection System
65 views
|
SKU: X5030c
₹1,245,000
₹1,245,000
Save ₹0
· Tunnel Size: 507 × 305 mm (W × H)
· Conveyor Speed: 0.20 m/s
· Maximum Load: ≤120 kg
· Wire Resolution: 38 AWG (0.1 mm metal wire)
· Spatial Resolution: Horizontal Φ1.0 mm / Vertical Φ2.0 mm
· Penetration: 32 mm Steel Board
· Monitor: 17" LED
· X-Ray Tube Voltage: 140 kV
· Film Safety: ASA/ISO1600 Standard
· High Density Alarm, TIP, Luggage Counter
· Power Consumption: 1 kVA
· Noise: 53.8 dB(A)
· Size: 1701 × 796 × 1150 mm (L × W × H)
Warranty
1 Year Standard
Delivery
Pan India
Installation
Free Setup
Support
24/7 Available
Highlights:
- Offer higher Wire Resolution with HAMAMATSU® X-ray detector
- True-color scanning image
- Widely usable for small parcels
- Excellent, ergonomic industrial design
Optional:
- Bidirection scan
- Electrical weighing system
- Fingerprint Console Board
- Console Desk
System Function:
- High density alarm
- Luggage counter
- System running timer
- X-ray emitting timer
- System maintainance
- TIP
Training: 64 times continuous zoom in
Optional Function:
- Video surveillance system,
- Bidirection scan,
- Electrical weighing system,
- Energy saving mode,
- Ultrasonic rat repellent
