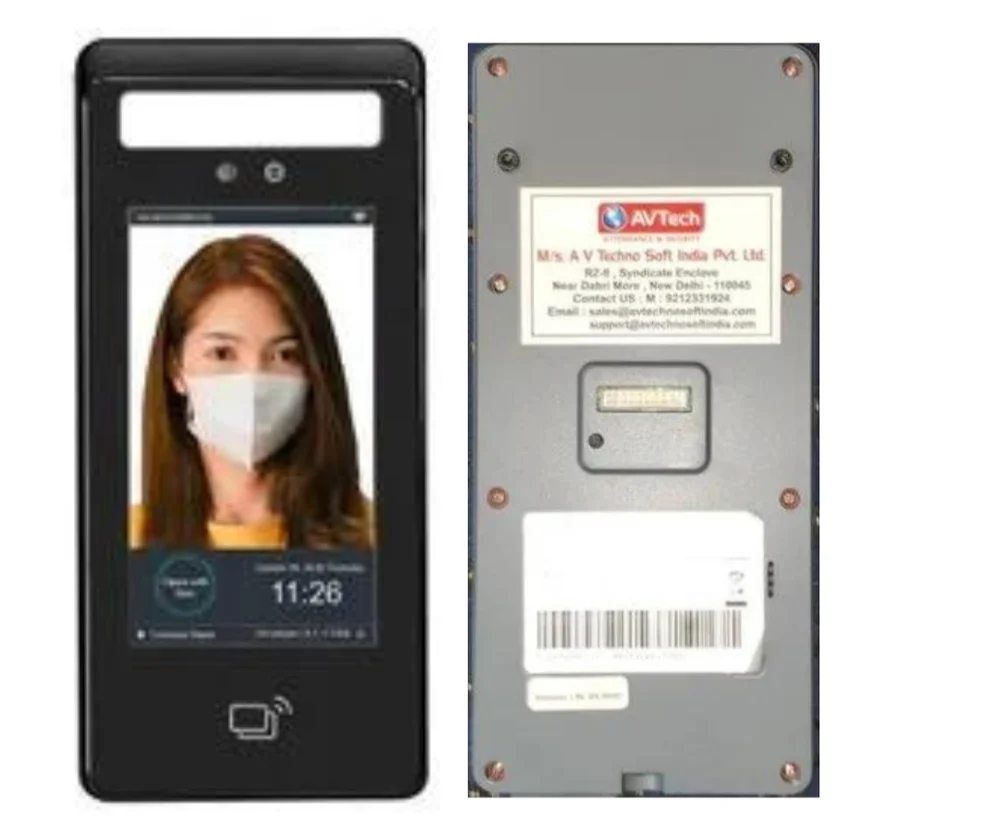

AV-1400 Pro Face Biometric - Contactless Attendance System
· 5.0-inch IPS Touch Screen Display
· 50,000 Face Capacity
(Upgradable to 100,000)
· 50,000 Card Capacity
· 1,000,000 Transaction
Capacity
· TCP/IP & USB Host
· Wiegand Out
· High-Speed Face
Recognition with Live Body Detection (Anti-Spoofing)
· DC 12V/2A Power Supply
· Dimensions: 190.00 ×
87.53 × 17.00 mm
Functions
•Face Capacity : 50,000
• Card Capacity : 50,000
• Max User : 50,000
• Logs Capacity : 10,00,000
• Face detection : Detect and track 5 people meanwhile
• Accuracy : 99.99%
• Living body detection : Support
• Capacity : 50000 (Max. 100000) pieces of face images
• Stranger detection : Support
• Recognition distance configuration : Support
• UI interface configuration : Support
• Remote upgrade : Support
• Deployment : Public network, LAN
General parameters
• Protection grade : IP54
• Power : DC 12V/2A
• Working temperature : -10°C~50°C
• Storage temperature : -20°C~60°C
• Working humidity : 10%~90%
• Power consumption : Max.15W
• Dimension : 190.00 mm * 87.53 mm * 17.00 mm
Display
• Display screen : 5-inch IPS all-sight LCD touch screen
• Resolution : 480 * 854Interfaces
• Serial communication interface : 1-way RS-232
• Relay output : 1-way door-opening signal output
• Wiegand output : 1-way Wiegand 26/34
• Signal input 2 ways, 1-way door magnetic signal input, 1-way door button input
• Network interface : 1-way 100M Ethernet
• Reset interface : 1 Reset button
• Card reader : module 1 compatible 1443 protocol type A/B card
• USB interface : 1-way Type-A
• Audio output : Not support
• Video output : Not support
• Speaker : 1 built-in speaker
• Alarm interface : 2-way alarm input
• Tamper button : 1
• Heat module : Not supportSystem parameters
• Operating system : Linux
• CPU : Dual-core ARM Cortex-A7@ 900MHz
• Storage 512M RAM, 8GM ROM
